Radiographic Projections and Contrast Media

What You Will Learn

• Principles for naming radiographic projections.
• Differences between routine and oblique projections.
• Clinical importance of positioning.
• Types of contrast media and their usage.
• The role of the viewbox (negatoscope) in diagnostic evaluation.
• Technical impact on veterinary diagnostic accuracy.

Introduction

The diagnostic quality of a radiograph does not rely exclusively on the equipment used, but on the correct positioning of the patient and the appropriate selection of the radiographic projection. Inadequate technique can lead to superimposition, anatomical distortions, or erroneous interpretations.

In veterinary medicine, where patient cooperation is limited and anatomical variations between species are significant, technical precision acquires special relevance. This article develops the foundations of radiographic projections, their classification, clinical applications, and the use of contrast media as complementary tools in diagnostic imaging.

1. Radiographic Projections: Concept and Foundation

Radiographic projections are named according to the direction the central ray of the primary beam follows from the point of entry to the point of exit in the animal's body.

The goal is to obtain the most convenient posture for the patient, reduce unnecessary superimpositions, and provide an image with diagnostic value. The correct choice of projection allows for the visualization of specific anatomical structures with greater precision.

2. Routine Radiographic Projections

Routine projections constitute the basis of radiological studies in veterinary medicine. The main ones include:

• 2.1 Ventro-Dorsal (VD): The ray enters through the ventral surface and emerges through the dorsal. Frequently used in abdominal and thoracic studies.
• 2.2 Dorso-Ventral (DV): The ray enters through the dorsal region and exits through the ventral. Indicated when the VD position is not clinically viable.
• 2.3 Cranio-Caudal (Cra-Cad): Used mainly in extremities, allowing for the evaluation of bone alignment.
• 2.4 Caudo-Cranial (Cad-Cra): The inverse of the previous one, useful depending on the anatomical structure evaluated.
• 2.5 Right Lateral (RL) and Left Lateral (LL): These allow for the evaluation of depth and three-dimensional anatomical relationships in thoracic and abdominal structures. Bilateral comparison is fundamental in orthopedic studies.

3. Special Projections in Extremities

In distal structures such as metacarpals and metatarsals, especially in equines, the following are used: Dorso-Palmar (DP), Palmo-Dorsal (PD), Dorso-Plantar (D-Pl), and Planto-Dorsal (Pl-D). These projections allow for the evaluation of cortical integrity, joint spaces, and the presence of osteolytic or proliferative lesions.

4. Oblique Projections

Oblique projections are used when standard projections do not allow for adequate visualization of certain structures due to bone superimposition. Examples include:

• Dorso 60° Lateral-Palmar Medial Oblique (D60°L-PaMO).
• Dorso Medial-Palmar Lateral Oblique (DM-PaLO).
• Palmar Medial-Dorso Lateral Oblicuo (PaM-DLO).
• Palmar Lateral-Dorso Medial Oblicuo (PaL-DMO).

These projections are especially relevant in equine orthopedic diagnosis, where small alterations can affect sports performance.

5. Importance of Correct Positioning

Inadequate positioning can generate geometric distortion, false asymmetries, superimposition of structures, and diagnostic errors. In veterinary radiology, where the patient does not always cooperate, the use of adequate restraints and sedation when necessary is essential to guarantee diagnostic precision.

6. Radiological Contrast Media

Contrast media are chemical substances used to modify the radiographic density of structures that are normally not visible on a simple radiograph. Their purpose is to increase or decrease the contrast of blood vessels, delimit cavities, evaluate hollow organs, and determine the size, shape, and position of soft tissues. They can be administered orally or intravenously, depending on the study.

7. Types of Contrast Media

7.1 Positive Contrast Agents

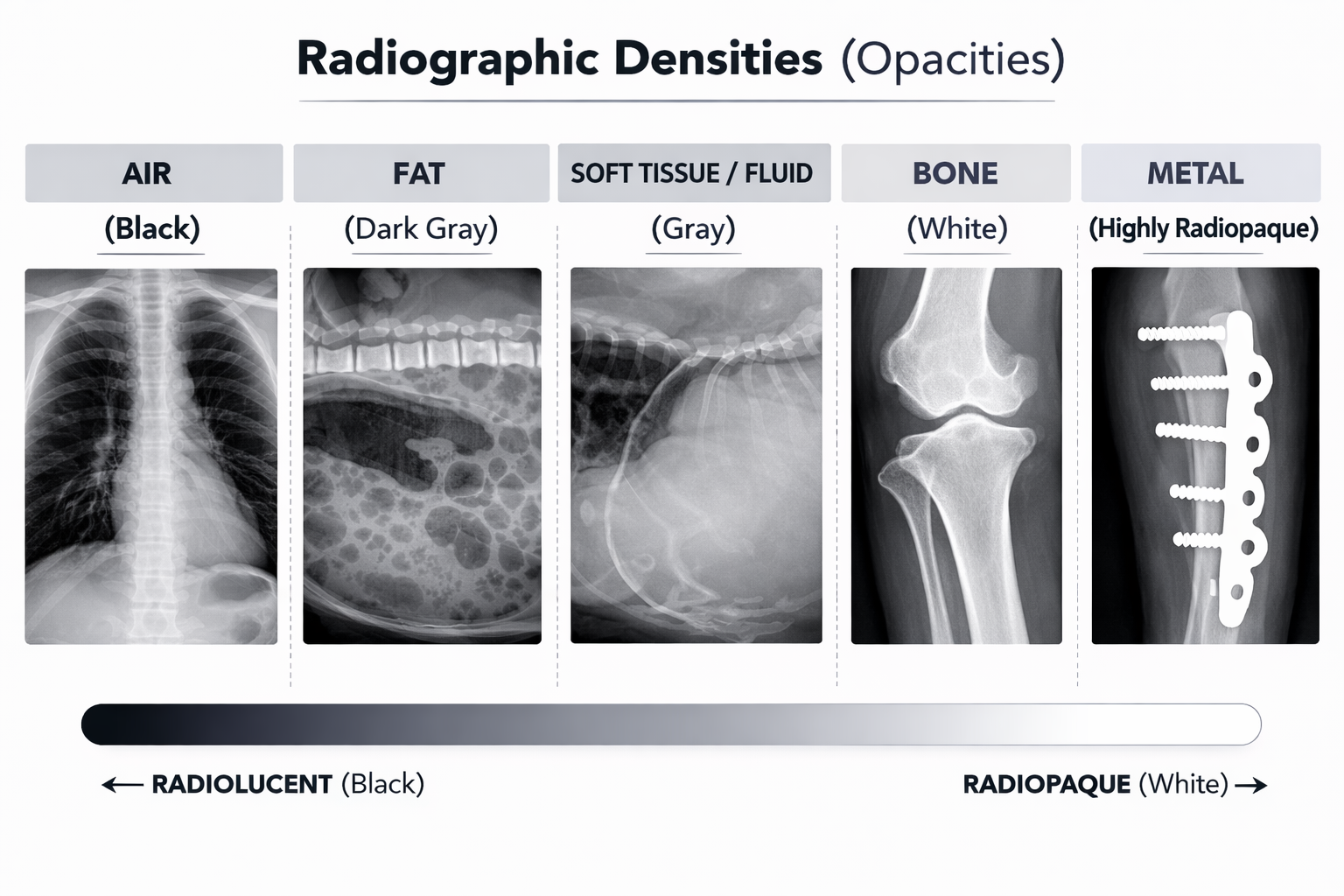

They contain elements with a high atomic number, making them radiopaque. Example: Barium sulfate. They appear white on the radiograph and allow for the visualization of structures such as the gastrointestinal tract.

7.2 Negative Contrast Agents

These are gases with low density, making them radiolucent. Examples: Air, Oxygen, Carbon dioxide. They are used to create internal contrast and delimit cavities.

8. The Viewbox (Negatoscope) in Radiographic Evaluation

The negatoscope is the device used to examine and study a radiographic plate. Uniform lighting is essential to correctly evaluate densities, identify subtle details, and reduce interpretation errors. In modern digital systems, this function is replaced by calibrated monitors.

9. Clinical Application and Diagnostic Relevance

The correct selection of projection and contrast allows for the diagnosis of hidden fractures, identification of joint displacements, evaluation of lung lesions, detection of gastrointestinal obstructions, and assessment of vascular integrity. In veterinary medicine, technical precision is decisive to avoid unnecessary procedures or incorrect treatments.
